자동세차기 제조 선두기업 (주)세홍

문형식 세차기

  • 롤오버 터치리스
  • 듀얼암터치리스

Applicable cars models Sedans, SUVs, MPV, etc.
Working Configuration - Program customization
- Chassis & tyre pre-wash system
- Automatic chemical mixing system
- Security alarm system
- Car wash quantity summary (total/interval)
- Fault alarm and record
- Pre-soak application system
- High pressure wash system
- Magic shampoo system
- Lava foam waterfall
- Wax application system
- Integrated air drying system
- Mounting frames
- Water pump (PINFL36+22Kw motor)
Installation Space (m) L11*W4*H3.5m
Machine dimension (m) L3.8*W2.25*H3.1m
Max. Car Size (m) L6*W2.1*H2.1m
Water pump power PINFL brand, 6-stage motor: 22kw/380v
Water pump pressure 100KG/CM²
Air dryer power 5.5kw*4 groups /380v
PLC system Germany Siemens
Wash Speed 3-6 minutes/car
Water Consumption 90-140L/car
Water supply pipe DN25
Shampoo consumption about 20-150ml per one liquid per one car (adjustable)
Electricity consumption around 0.5-1.0kw/h per one car
Delivery time 10-20 days
Payment terms 50% T/T in advance, the rest paid before delivery
Main Systems and Configuration List
1 High pressure pre-wash for under chassis and wheels
2 360° rotating spray and wipe-free car washing liquid
3 360° rotating spray high foam car washing liquid
4 High pressure flush standard/powerful free switching
5 360° horizontal spray Water wax coating
6 Program customization
7 Built-in air drying (4 dryers/standard/powerful free switching)
8 3D detection
9 Intelligent electronic collision avoidance
10 Mechanical hardware collision avoidance
11 Program customization
12 One button start/stop
13 Colorful lights
14 Car wash quantity summary(total/interval)
15 Leakage protection
16 Water level monitoring and water shortage protection
17 Fault self-checking
18 Remote maintenance service
19 Fault alarm and record
20 Remote control/touch screen operation
21 Operation authority system
22 Oil free (reducer and bearing)
23 Frequency conversion system
24 Energy saving system
25 Direct drive system
26 Water and electricity separation
27 Hot dip galvanized frame double anticorrosive
28 Push-up walk system
29 System free upgrade service
30 Water foam separation
31 Parking guidance system
32 Indicating parking range
33 Automatic detection of vehicle length
34 Security alarm system
35 Auto standby function
36 Remote control operation
37 Man-machine interface operation
38 LED prompt screen and arrow text remind system (colored bigger update model) including flash, washing process show and washing time show
39 Automatic chemical proportioning system (4 Types of liquid)
40 Lava foam waterfall spraying
41 Air compressor
42 Enhanced cleaning of front and rear(intelligent)
43 Automatic clean rear view mirror(intelligent)
44 Automatic detection of vehicle width(intelligent)
45 360 Cross Arm Translation System
Warranty 3 years (include all the spare parts are free in this 3 years)
Applicable cars models Sedans, SUVs, MPV, etc.
Working Configuration - Program customization
- Chassis & tyre pre-wash system
- Automatic chemical mixing system
- Security alarm system
- Car wash quantity summary (total/interval)
- Fault alarm and record
- Pre-soak application system
- High pressure wash system
- Magic shampoo system
- Lava foam waterfall
- Wax application system
- Integrated air drying system
- Mounting frames
- 2 Water pump (PINFL PT45+15Kw motor)
Machine dimension (mm) L8m*W3.5m*H2.8m
Max. Car Size (mm) L6800*W2400*H2200mm
Water pump power 2 sets PINFL brand, 6-stage motor: 15kw/380v
Water pump pressure 100KG/CM²
Independent fixed Air dryer power 5.5kw*6 groups /380v
PLC system Germany Siemens
Wash Speed 2-5 minutes/car
Water Consumption 140-200L/car
Water supply pipe DN25
Shampoo consumption about 20-150ml per one liquid per one car (adjustable)
Electricity consumption around 0.8-1.5kw/h per one car
Delivery time 40 days
Payment terms 50% T/T in advance, the rest paid before delivery
Main Systems and Configuration List
1 High pressure pre-wash for under chassis and wheels
2 360° rotating spray and wipe-free car washing liquid
3 360° rotating spray high foam car washing liquid
4 High pressure flush standard/powerful free switching
5 360° horizontal spray Water wax coating
6 Program customization
7 Built-in air drying (4 dryers/standard/powerful free switching)
8 Automatic chemical proportioning system (6 Types of liquid: shampoo/wax/wipe/free/ordinary foam)
9 3D detection
10 Intelligent electronic collision avoidance
11 Mechanical hardware collision avoidance
12 Program customization
13 One button start/stop
14 Colorful lights
15 Car wash quantity summary (total/interval)
16 Leakage protection
17 Water level monitoring and water shortage protection
18 Fault self-checking
19 Remote maintenance service
20 Fault alarm and record
21 Remote control/touch screen operation
22 Operation authority system
23 Oil free (reducer and bearing)
24 Frequency conversion system
25 Energy saving system
26 Direct drive system
27 Water and electricity separation
28 Hot dip galvanized frame double anticorrosive
29 Push-up walk system
30 System free upgrade service
31 Water foam separation
32 Parking guidance system
33 Indicating parking range
34 Automatic detection of vehicle length
35 Security alarm system
36 Auto standby function
37 Remote control operation
38 Man-machine interface operation

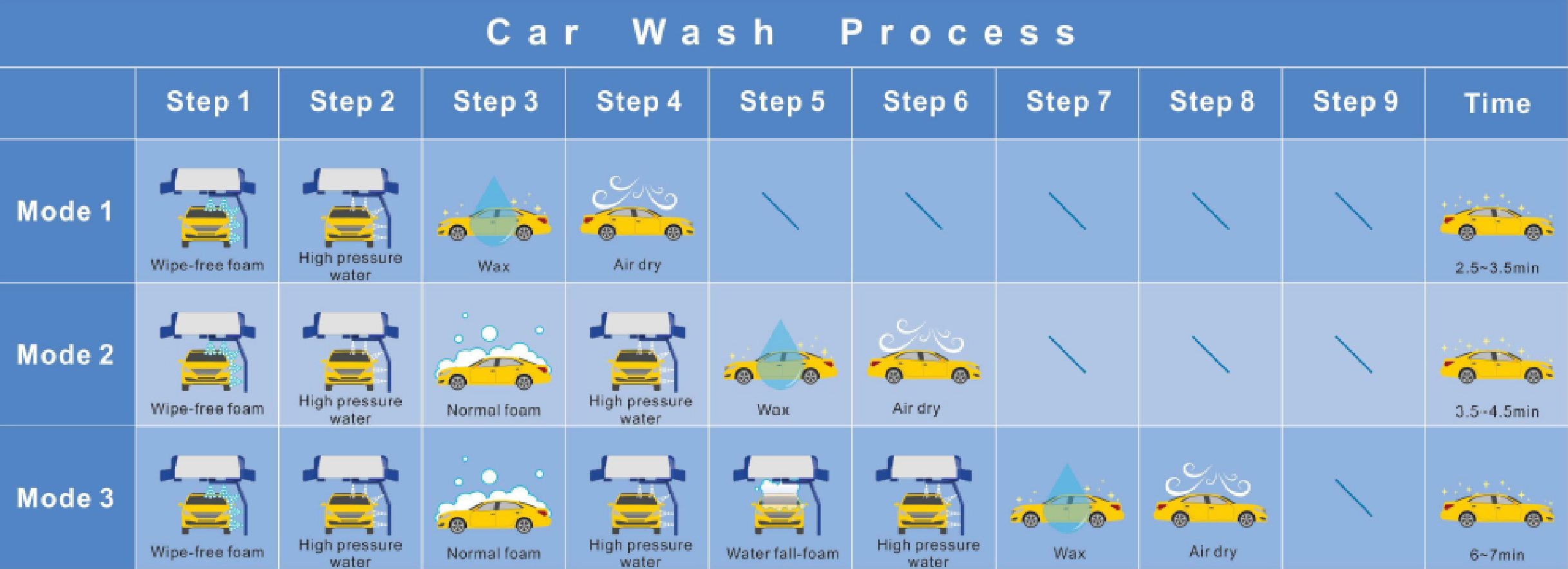

Washing mode

Customization support:
The wash mode can be customized according to customer requirements, free charge.
